Our range of FW SX winches is ideal for lifting operations and covers pulling capacities from 600kg to 6,500kg.
Thanks to their compact size, all winches offer a long rope length despite their small dimensions.
They can be equipped with various accessories.
Product not suitable for lifting people.
|
FW 220SXL |
FW 250SX |
FW 250SXL |
FW 300SX |
FW 300SXL |
FW 350SX |
FW 350SXL |
FW 450SX |
FW 450SXL |
FW 550SX |
FW 750SX |
||
| 1ST LINE PULL | daN | 2050 | 2325 | 2325 | 3100 | 3100 | 3600 | 3600 | 4300 | 4300 | 5500 | 6500 |
| LAST LINE PULL | daN | 1370 | 1560 | 1560 | 2200 | 2200 | 2550 | 2550 | 2820 | 2820 | 4200 | 5200 |
| ROPE LAYER | n° | 5 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 4 |
| ROPE SIZE | mm | 10 | 11 | 11 | 13 | 13 | 14 | 14 | 15 | 15 | 16 | 18 |
| ROPE LENGHT | m | 140 | 50 | 98 | 70 | 136 | 62 | 128 | 58 | 120 | 128 | 88 |
| ROPE SPEED | m/min | 30 | 28 | 28 | 34 | 34 | 32 | 32 | 30 | 30 | 38 | 36 |
| WEIGHT | kg | 100 | 87 | 102 | 129 | 155 | 136 | 160 | 140 | 165 | 340 | 360 |
| MAX FLOW | l/min | 60 | 60 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 130 | 130 |
| PRESSURE | bar | 160 | 180 | 180 | 175 | 175 | 185 | 185 | 195 | 195 | 260 | 280 |
| MOTOR | cc/rev | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 45 | 45 |
| ENGINE TORQUE | Nm | 210 | 230 | 230 | 220 | 220 | 220 | 220 | 220 | 220 | 150 | 160 |
| MAX TORQUE ON DRUM | Nm | 2600 | 2700 | 2700 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 12300 | 12300 |
|
MAX BACK PRESSURE ON DRUM |
bar | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| GEAR RATIO | 13,8 | 13,8 | 13,8 | 26,8 | 26,8 | 26,8 | 26,8 | 26,8 | 26,8 | 90,7 | 90,7 | |
|
FULL OPENING BRAKE PRESSURE |
bar | 25 | 25 | 25 | 33 | 33 | 33 | 33 | 33 | 33 | 19 | 19 |

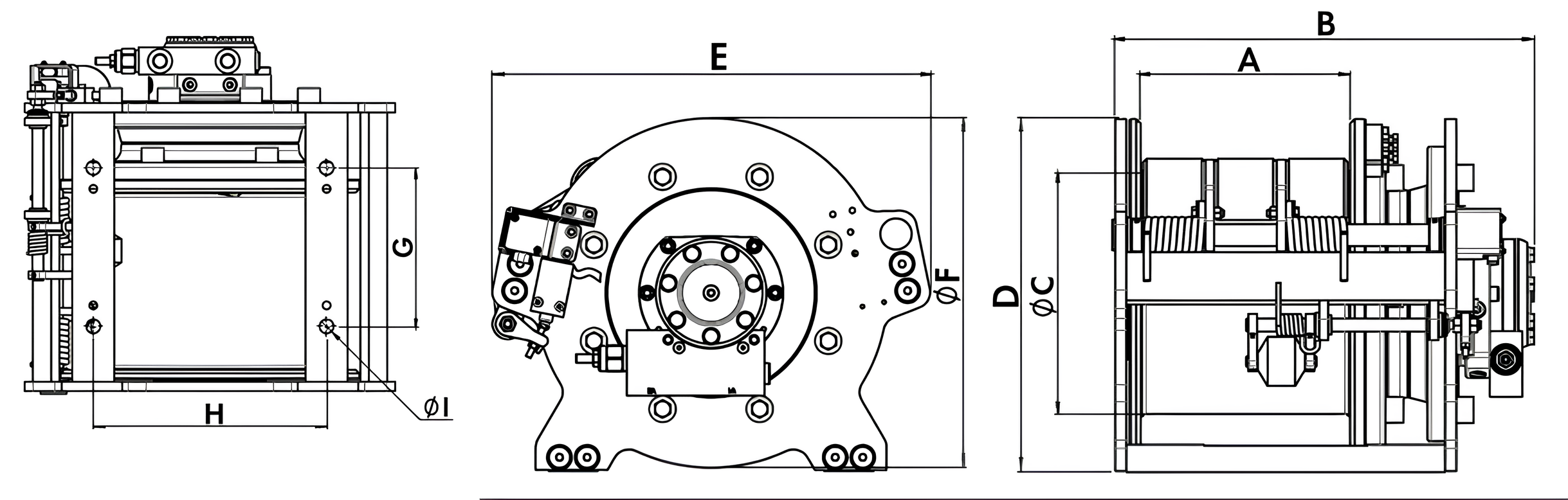

| A | mm | 372 | 190 | 372 | 213 | 413 | 213 | 413 | 213 | 413 | 352 | 352 |
| B | mm | 560 | 380 | 560 | 495 | 690 | 495 | 690 | 495 | 690 | 700 | 700 |
| Ø C | mm | 220 | 220 | 220 | 250 | 250 | 250 | 250 | 250 | 250 | 323 | 323 |
| D | mm | 322 | 322 | 322 | 404 | 404 | 404 | 404 | 404 | 404 | 500 | 500 |
| E | mm | 384 | 384 | 384 | 470 | 490 | 470 | 490 | 470 | 490 | 580 | 580 |
| Ø F | mm | 322 | 322 | 322 | 400 | 400 | 400 | 400 | 400 | 400 | 500 | 500 |
| G | mm | 364 | 170 | 364 | 245 | 445 | 245 | 445 | 245 | 445 | 380 | 380 |
| H | mm | 250 | 250 | 250 | 360 | 360 | 360 | 360 | 360 | 360 | 410 | 410 |
| Ø I | mm | 15 | 15 | 15 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
