Our FW BX winch range has a pulling capacity ranging from 2,100 kg to 3,600 kg.
The use of an improved hydraulic motor allows for greater lifting capacity with the same compact size as the SX range model.
They can be equipped with various accessories.
Product not suitable for lifting people.
| FW 207 BX | FW 207 BX L | FW 270 BX | FW 270 BX L | ||
| 1ST LINE PULL | daN | 2100 | 2100 | 2350 | 2350 |
| LAST LINE PULL | daN | 1590 | 1590 | 1920 | 1920 |
| ROPE LAYERS | n° | 5 | 5 | 5 | 5 |
| ROPE SIZE | mm | 10 | 10 | 11 | 11 |
| ROPE LENGHT | m | 80 | 150 | 70 | 130 |
| ROPE SPEED | m/min | 38 | 38 | 40 | 40 |
| WEIGHT | kg | 90 | 110 | 90 | 110 |
| MAX FLOW | l/min | 60 | 60 | 60 | 60 |
| CONT. OIL FLOW | l/min | 40 | 40 | 40 | 40 |
| PRESSURE | bar | 170 | 170 | 170 | 170 |
| MOTOR | cc/rev | 99,9 | 99,9 | 99,9 | 99,9 |
| MAX TORQUE ON DRUM | Nm | 2625 | 2625 | 3260 | 3260 |
|
MAX BACK PRESSURE ON RETURN LINE |
bar | 2 | 2 | 2 | 2 |
| GEAR RATION | 16,2 | 16,2 | 16,2 | 16,2 | |

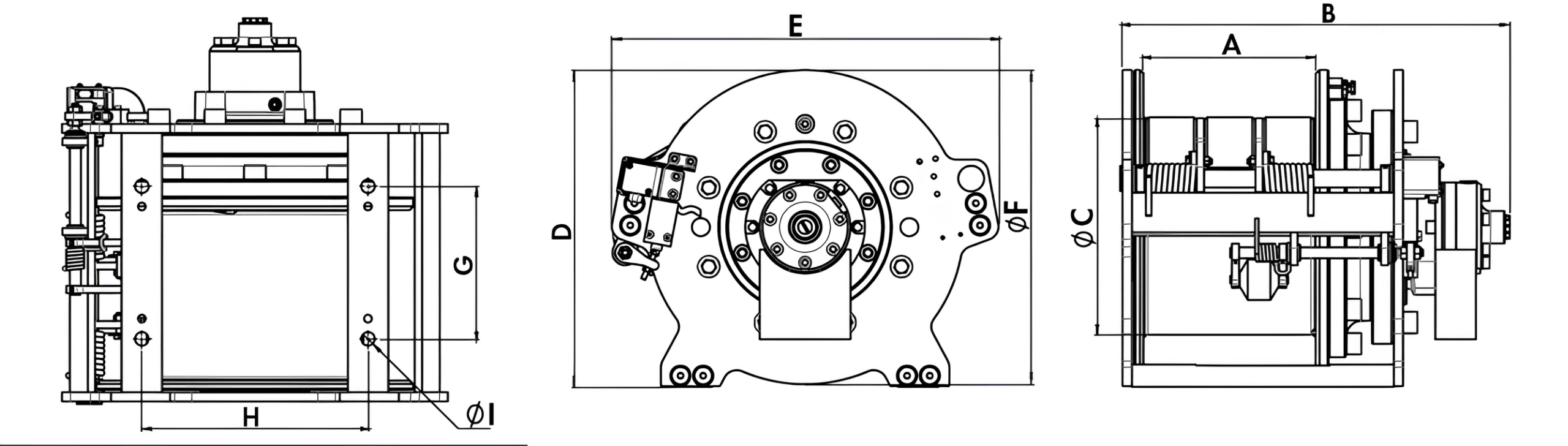

| A | mm | 190 | 372 | 190 | 372 |
| B | mm | 430 | 600 | 430 | 600 |
| Ø C | mm | 240 | 240 | 240 | 240 |
| D | mm | 363 | 363 | 363 | 363 |
| E | mm | 430 | 430 | 430 | 430 |
| Ø F | mm | 360 | 360 | 360 | 360 |
| G | mm | 170 | 384 | 170 | 384 |
| H | mm | 250 | 250 | 250 | 250 |
| Ø I | mm | 15 | 15 | 15 | 15 |
